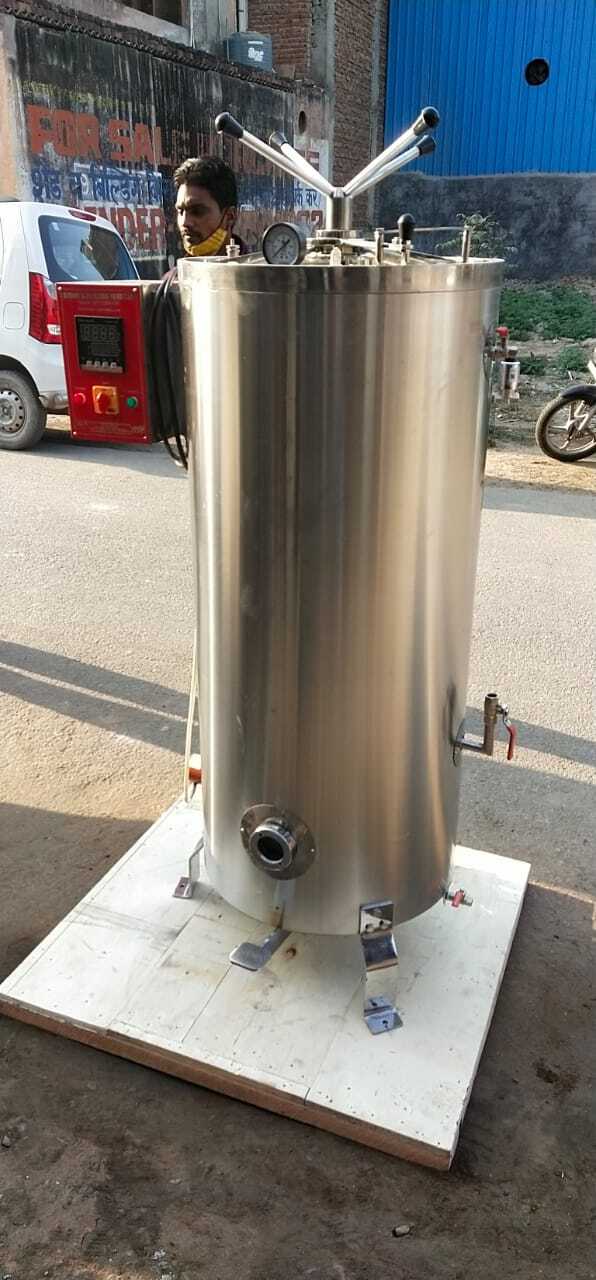

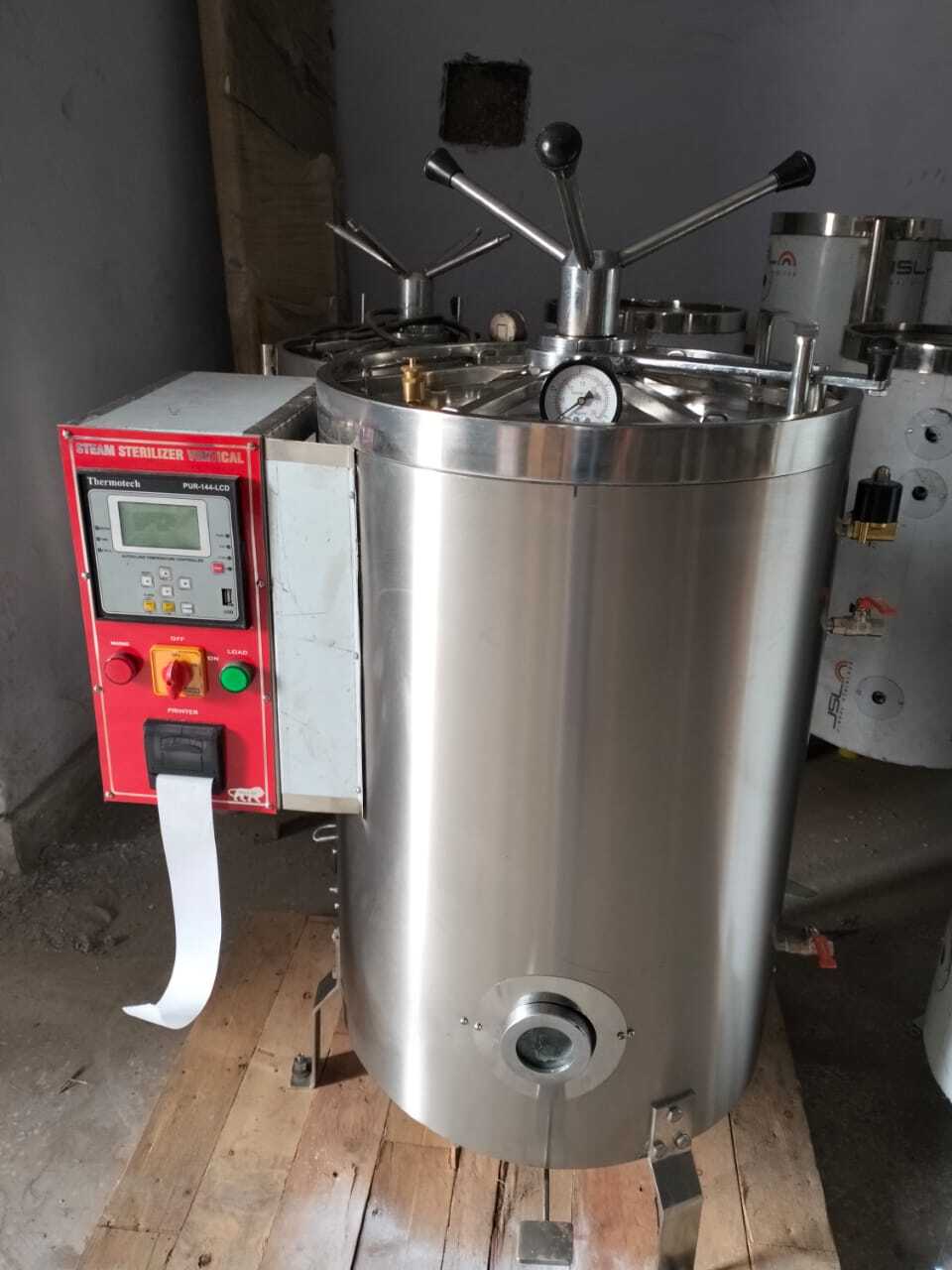

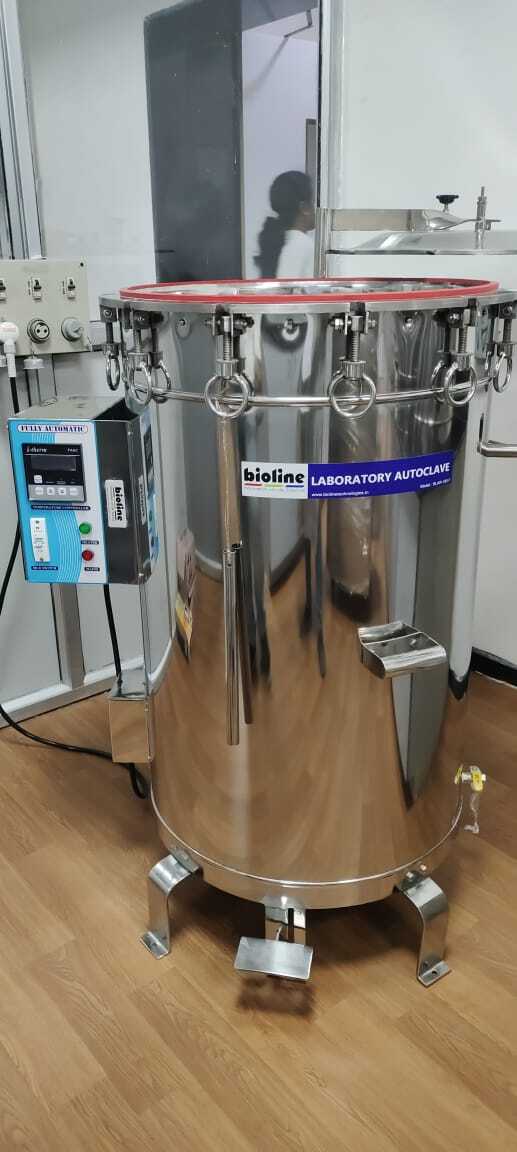

Vertical Autoclave

Make

"BIOLINEï

HSN Code

8419

Certification

CE Certification

Construction

Vertical double walled cylindrical design, has single chamber for Steam & water

ï ï ï Lid fitting Pressure gauge 0-30 PSI, safety spring loaded Pressure valve, steam Release valve.

Features

Foot lifting arrangement is provided in 121C/D/E/F/G

Basket

S. S. Rod Basket

Safety

Safety high pressure release valve

Vacuum Breaker

Vacuum breaker & self-purging system

Supply

230V AC, Single Phase, 50Hz

SPECIFICATIONS :

Standard Model

Inside S.S. 304 mirror finish. Outer SS 304 mirror finish.

GMP Model

Inside S.S. 316 mirror finish. Outer SS 304 mirror finish.

Temp. Range

121^oc to 125^oc at 15 PSI pressure

121^oc to 135^oc at 30 PSI pressure ( Pls ask for ETP series model )

Pressure Range

15 to 22 PSI, factory set at 15 PSI

Models

Capacity

Liters

Internal size

Dia. x Ht. cm

Rating (KW)

BLAR-22 A

22

25 x 45

1.5

BLAR-35 B

35

30 x 50

2.0

BLAR-53 C

53

35 x 55

3.0

BLAR-95 D

95

45 x 60

4.0

BLAR-120 E

119

45 x 75

4.5

BLAR-180F

178

55 x 75

6.0

BLAR-200 G

200

22 X 36

6.0
